Highlights
Durable designs
for harsh, salt-laden environments
Compliance
with documented testing and independent 3rd party type approvals
Safer operation
through flashback prevention and optimal tank breathing
Comprehensive protection
backed by application-specific engineering
Application Example

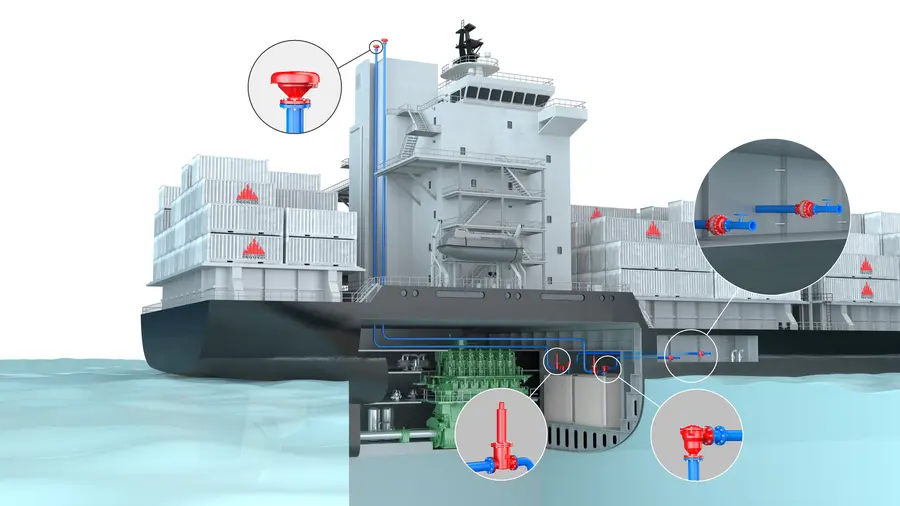

Scheme B
- Protection of the fuel tank with a redundant in-line combination of pilot-operated Pressure Vacuum Relief Valve Pressure and vacuum relief valve A pressure and vacuum relief valve is a pressure equalization valve for impermissible pressure and vacuum in a closed system. and a high-velocity Pressure Relief Valve in combination with a Vacuum Relief Valve at the vent mast
- PROTEGO® Valves are type approved as per EN ISO 16852 and conform to ISO/IEC 80079-49 respectively and ISO 15364
- Type approvals as per classification authority upon request
Highlights
Durable designs
for harsh, salt-laden environments
Compliance
with documented testing and independent 3rd party type approvals
Safer operation
through flashback prevention and optimal tank breathing
Comprehensive protection
backed by application-specific engineering
Application Example

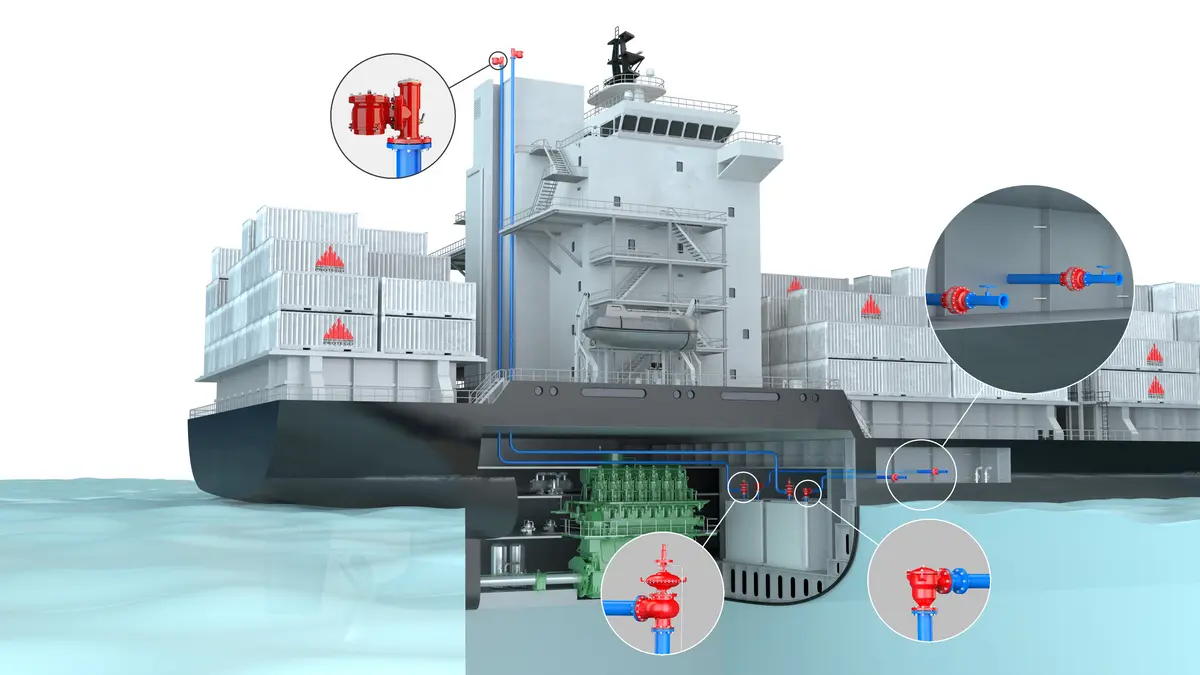

Scheme C
- PROTEGO® Flame Arresters Flame arrester Device fitted to the opening of an enclosure, or to the connecting pipe work of a system of enclosures, and whose intended function is to allow flow but prevent the transmission of a flame. are type approved as per EN ISO 16852 and conform to ISO/IEC 80079-49 respectively to prevent against the impact of atmospheric deflagration Deflagration Explosion propagating at subsonic velocity. and endurance burning Endurance burning Stabilized burning for an unlimited time.
- PROTEGO® Flame Arresters are type approved for endurance burning with alcohols as required by the operating conditions
- Type approvals as per classification authority upon request
Application Example

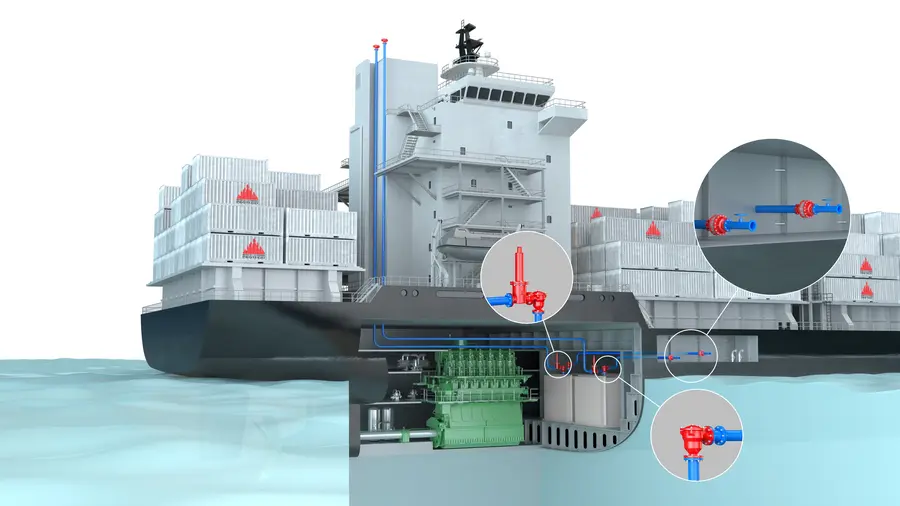

Scheme D
- PROTEGO® Flame Arresters are type approved as per EN ISO 16852 and conform to ISO/IEC 80079-49 respectively for explosion Explosion Abrupt oxidation or decomposition reaction producing an increase in temperature, pressure, or in both simultaneously. group IIA for methanol and IIB1 or higher for ethanol
- PROTEGO® Flame Arresters are type approved and tested for elevated pressures and temperatures as required by the operating conditions
- Type approvals as per classification authority upon request
Application Example
Scheme E
- PROTEGO® Valves are type approved as per EN ISO 16852 and conform to ISO/IEC 80079-49 respectively and ISO 15364
- Type approvals as per classification authority upon request
Highlights
Durable designs
for harsh, salt-laden environments
Compliance
with documented testing and independent 3rd party type approvals
Safer operation
through flashback prevention and optimal tank breathing
Comprehensive protection
backed by application-specific engineering
The PROTEGO® devices are working to our utmost satisfaction. PROTEGO® - who, with their technical expertise, supported in reducing the overall life cycle cost of the Detonation Flame Arresters installed at our plant by installing flame arresters, which are easy to clean and maintenance-friendly.
