In-Line Detonation Flame Arrester for stable detonations and deflagrations in a straight through design with shock tube, bidirectional

Request for Quotation Find Contact Person

Features

Use of Patented Shock Wave Guide Tube Effect (SWGTE)

Low Number of FLAMEFILTER® Discs Due to the Patented Shock Wave Guide Tube Effect (SWGTE)

Optimized Performance

Due to the Patented Shock Wave Guide Tube Effect (SWGTE)

Extended Application Range

for Elevated Operating Temperatures and Pressures

Spare Parts

Cost-Effective Spare Parts

Low Costs

Low Operating and Lifecycle Costs

Maintenance-Friendly PROTEGO® Flame Arresters

Use of Maintenance-Friendly PROTEGO® Flame Arrester Unit Possible

Temperature Sensors Possible

Use of Temperature Sensors for G 1½ and G 2 Is Possible

Bi-Directional Flame Transmission

Proof Design

Differnt Series

Allow Increase of FLAMEFILTER® Size for Given Flange Connection Resulting in Lower Pressure Drop Across the Device

Function and Description

Minimal Pressure Losses with Maximum Safety

The In-Line Detonation Detonation Explosion, die sich mit Überschallgeschwindigkeit fortpflanzt, gekennzeichnet durch eine Stoßwelle. Flame Arresters Type PROTEGO® DA-SB are the newest generation of Flame Arresters. Based on flow and explosion dynamic calculations as well as decades of field tests, a product line was developed that offers minimum pressure losses with maximum safety. The Flame Arrester uses the Shock Wave Guide Tube Effect (SWGTE) to separate the flame front and shock wave. The result is an in-line detonation arrester without a classic shock absorber, which minimizes the use of FLAMEFILTER® discs.

Main Component – PROTEGO® Flame Arrester Unit

The devices are symmetrical and offer bi-directional flame arresting for deflagrations and stable detonations. The arrester essentially consists of two housing parts with an integrated shock tube (1) and the PROTEGO® Flame Arrester Unit (2) in the center. The PROTEGO® Flame Arrester Unit is modular and consists of several FLAMEFILTER® discs (3) and spacers firmly held in a FLAMEFILTER® casing. The number of FLAMEFILTER® discs and their gap size depends on the arrester‘s intended use.

Suitable for All Explosion Groups

By specifying the operating conditions, such as the temperature, pressure, explosion group, and the composition of the fluid, the optimum detonation arrester can be selected from a series of approved devices. The PROTEGO® DA-SB Flame Arresters are available for all explosion groups. The standard design can be used with an operating temperature of up to +60°C / 140°F and an absolute operating pressure up to bar / 15.9 psi. Numerous devices with special approval for higher pressures (see table 3) and higher temperatures are available upon request. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

Get in Touch

Any questions? Contact our engineers.

Contact

Product Data

Dimensions

To select nominal width/nominal size (NG/DN) - combination, please use the flow capacity charts on the following pages
Additional nominal width/nominal size (NG/DN) - combinations for improved flow capacity upon request

standard

150 / 6"

200 / 8"

300 / 12"

400 / 16"

500 / 20"

600 / 24"

700 / 28"

800 / 32"

1000 / 40"

1200 / 48"

1600 / 64"

≤50 / 2"

65, 80 / 2½“, 3"

≤100 / 4"

≤150 / 6"

≤200 / 8"

≤250 / 10"

≤300 / 12"

≤350 / 14"

≤400 / 16"

≤500 / 20"

≤600 / 24"

≤800 / 32"

285 / 11.22

340 / 13.39

445 / 17.52

565 / 22.24

670 / 26.38

780 / 30.71

895 / 35.24

1015 / 39.96

1230 / 48.43

1455 / 57.28

1915 / 75.39

IIA-P1,1

388 / 15.28

476 / 18.74

626 / 24.65

700 / 27.56

800 / 31.50*

1000 / 39.37*

1200 / 47.24

1400 / 55.12

1600 / 62.99

1800 / 70.87

2200 / 86.61**

IIA-P1,4-X3

400 / 15.75

488 / 19.21

626 / 24.65

700 / 27.56

800 / 31.50

1000 / 39.37

1200 / 47.24

1400 / 55.12

IIB3-P1,1

400 / 15.75

412 / 16.22

500 / 19.69

650 / 25.59

724 / 28.50

824 / 32.44

1000 / 39.37

1200 / 47.24

1400 / 55.12

1600 / 62.99

1800 / 70.87

IIB3-P1,4-X3

412 / 16.22

512 / 20.16

650 / 25.59

724 / 28.50

824 / 32.44

1000 / 39.37

1200 / 47.24

1400 / 55.12

IIC-P1,1

400 / 15.75

500 / 19.69

638 / 25.12

700 / 27.56

788 / 31.02

1000 / 39.37***

1200 / 47.24***

1400 / 55.12***

500 / 19.69

520 / 20.47

570 / 22.44

620 / 24.41

670 / 26.38

720 / 28.35

770 / 30.31

820 / 32.28

950 / 37.40

1050 / 41.34

1250 / 49.21

Dimensions in mm / inches

special sizes up to NG 2000/80“, DN 1000/40“ available

* dimension b only for P1.4 / 20.3
** dimension b only for P1.2 / 17.4
*** EN 12874

Material selection for housing

Design	A	B	C
Housing	Steel	Stainless Steel	Hastelloy
Heating jacket (DA-SB-(T)-H-...)	Steel	Stainless Steel	Stainless Steel
Gasket	PTFE	PTFE	PTFE
Flame arrester unit	A, B	B, C, D	D

The housing is also available in carbon steel with an ECTFE coating.

Special materials upon request

Material combinations of flame arrester unit

Design	A	B	C	D
FLAMEFILTER^® cage	Steel	Stainless Steel	Stainless Steel	Hastelloy
FLAMEFILTER^®*	Stainless Steel	Stainless Steel	Hastelloy	Hastelloy
Spacer	Stainless Steel	Stainless Steel	Hastelloy	Hastelloy

*the FLAMEFILTER^® are also available in the materials Tantalum, Inconel, Copper, etc. when the listed housing and cage materials are used.

Special materials upon request

Selection of explosion group

MESG	Expl. Gr. (IEC / CEN)	Gas Group (NEC)
> 0,90 mm	IIA	D
≥ 0,65 mm	IIB3	C
< 0,50 mm	IIC	B

Special approvals upon request

Selection of max. operating pressure

Expl. Gr.

50 / 2"

80 / 3"

100 / 4"

150 / 6"

200 / 8"

250 / 10"

300 / 12 "

350 / 14"

400 / 16"

500 / 20''

600 / 24"

800 / 32"

150 / 6''

200 / 8''

300 / 12''

400 / 16''

500 / 20''

600 / 24''

700 / 28''

800 / 32''

1000 / 40''

1200 / 48''

1600 / 64''

IIA

Pmax

2,1 / 30.5

1,4 / 20.3

1,1 / 15.9

1,2 / 17.4

IIB3

Pmax

1,4 / 20.3

1,8 / 26.1

1,4 / 20.3

1,1 / 15.9

IIC

Pmax

2,2 / 31.9

1,1 / 15.9

1,1* / 15.9

Pmax = maximum allowable operating pressure in bar / psi absolut, higher operating pressure upon request

in-between size up to Pmax upon request
*capacity charts upon request

Specification of max. operating temperature

≤ 60°C / 140°F	≤ 200°C / 392°F	Tmaximum allowable operating temperature in °C
-	X3	Designation

higher operating temperatures upon request

Flange connection type

EN 1092-1; Form B1

ASME B16.5 CL 150 R.F.

other connections upon request

Design Types and Specifications

There are four different designs available:

Basic design of the detonation arresterDA-SB- – - –

In-line detonation flame arrester with integrated temperature sensor* as additional protection against short time burning of one sideDA-SB- T - –

Detonation arrester with two integrated temperature sensors* as additional protection against short time burning from both sidesDA-SB- TB - –

In-line detonation flame arrester with heating jacketDA-SB- H -

Additional special arresters upon request
*Resistance thermometer for device group II, category (1) 2 (GII cat. (1) 2)

Flow Capacity Chart

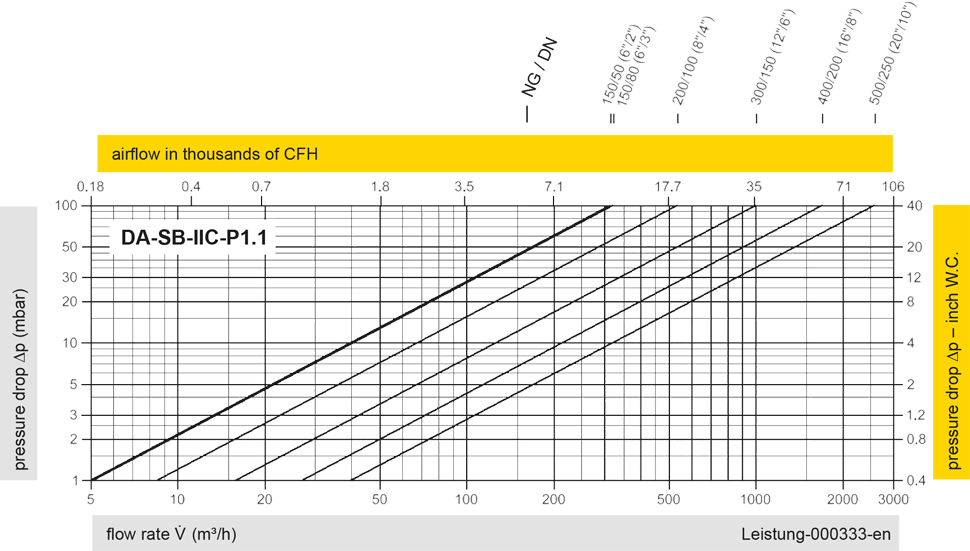

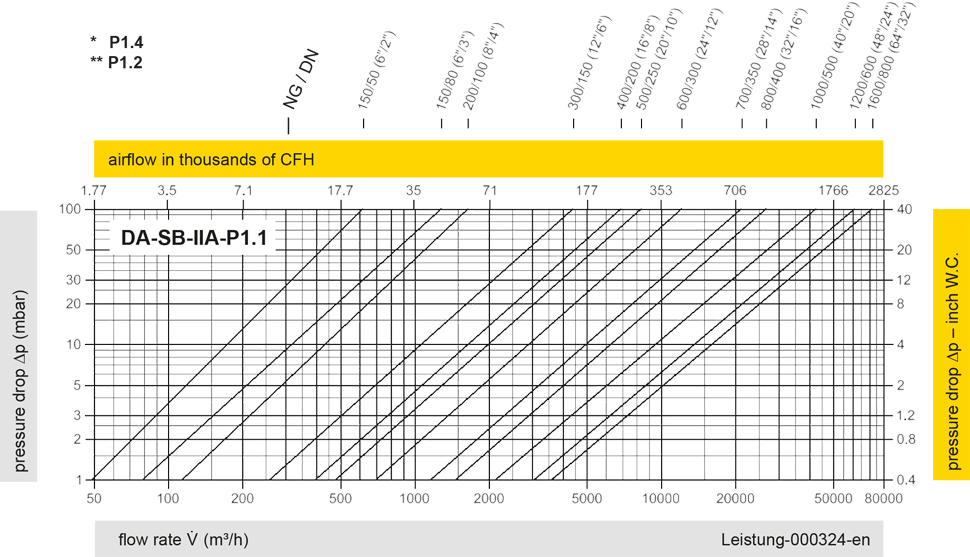

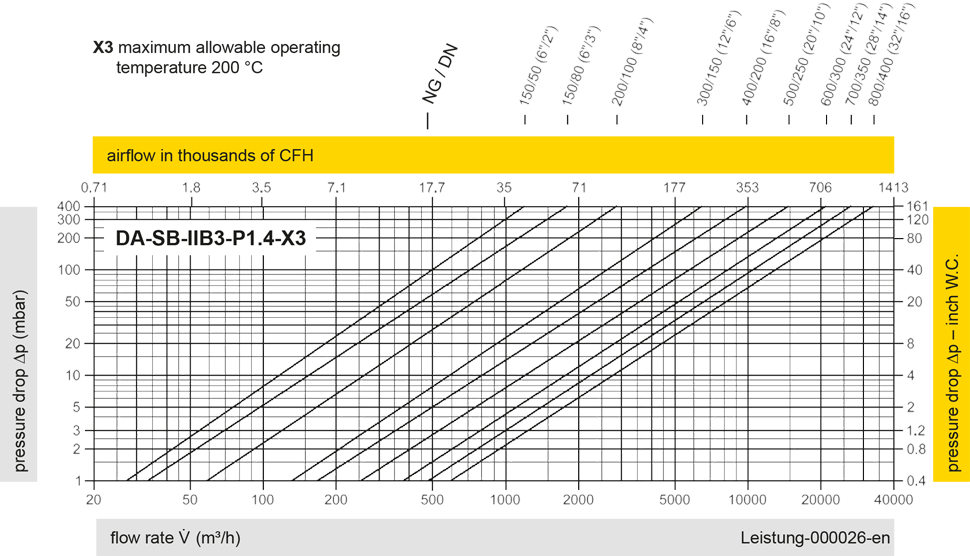

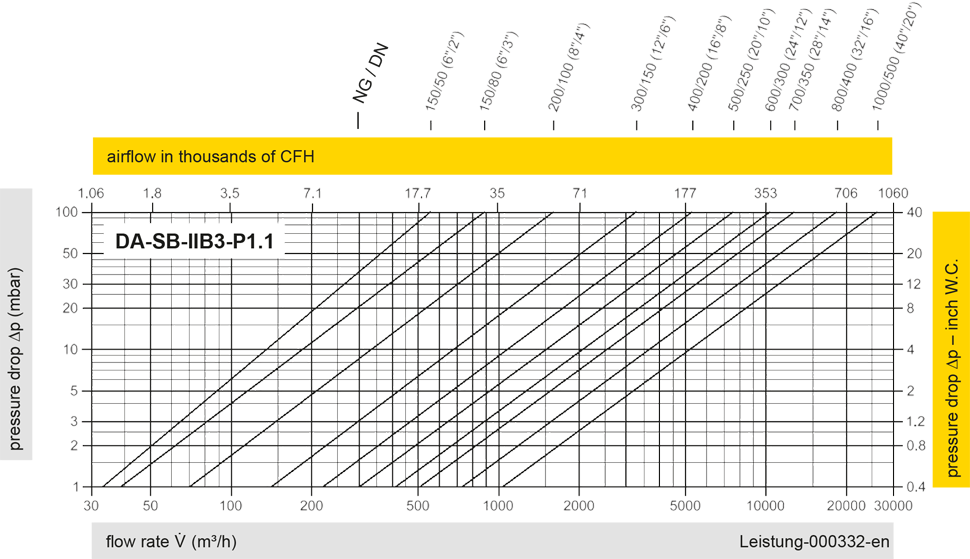

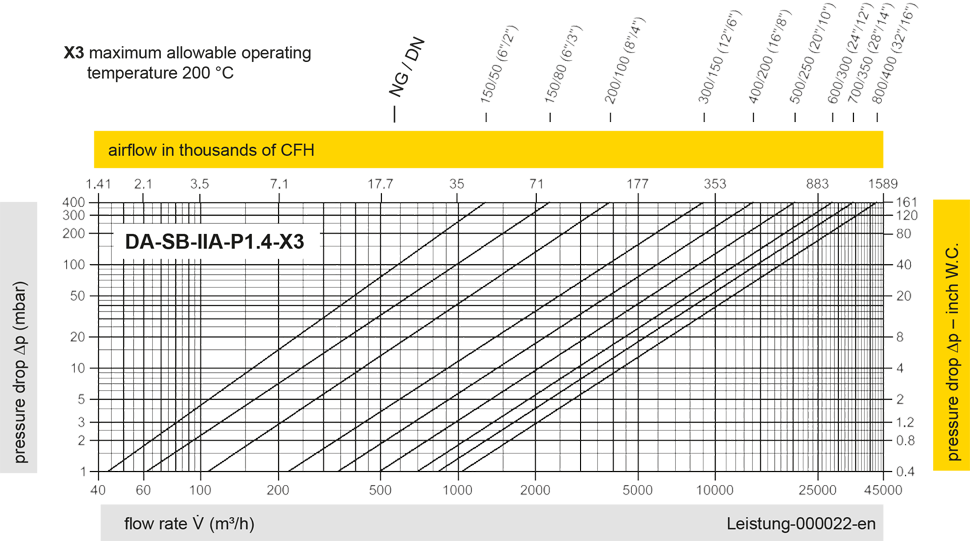

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
