PS/K, PS/TK

Name: PS/K, PS/TK
Brand: PROTEGO
SKU: product3288720276912

Gauge Hatch with welded nozzle

Request for Quotation Find Contact Person

Features

Lockable Sounding Openings

For Lockable Sounding Openings That Are Only Opened for Sounding or Sampling

Stainless Steel Sounding Marks

The Housings Are Standardly Equipped With Stainless Steel Sounding Marks

Foot-Operated Control

In the Foot-Operated Design, the Sounding Nozzle Pedal Is Connected With the Housing and Bracket

Function and Description

Lockable Level Gauging and Sampling Nozzles

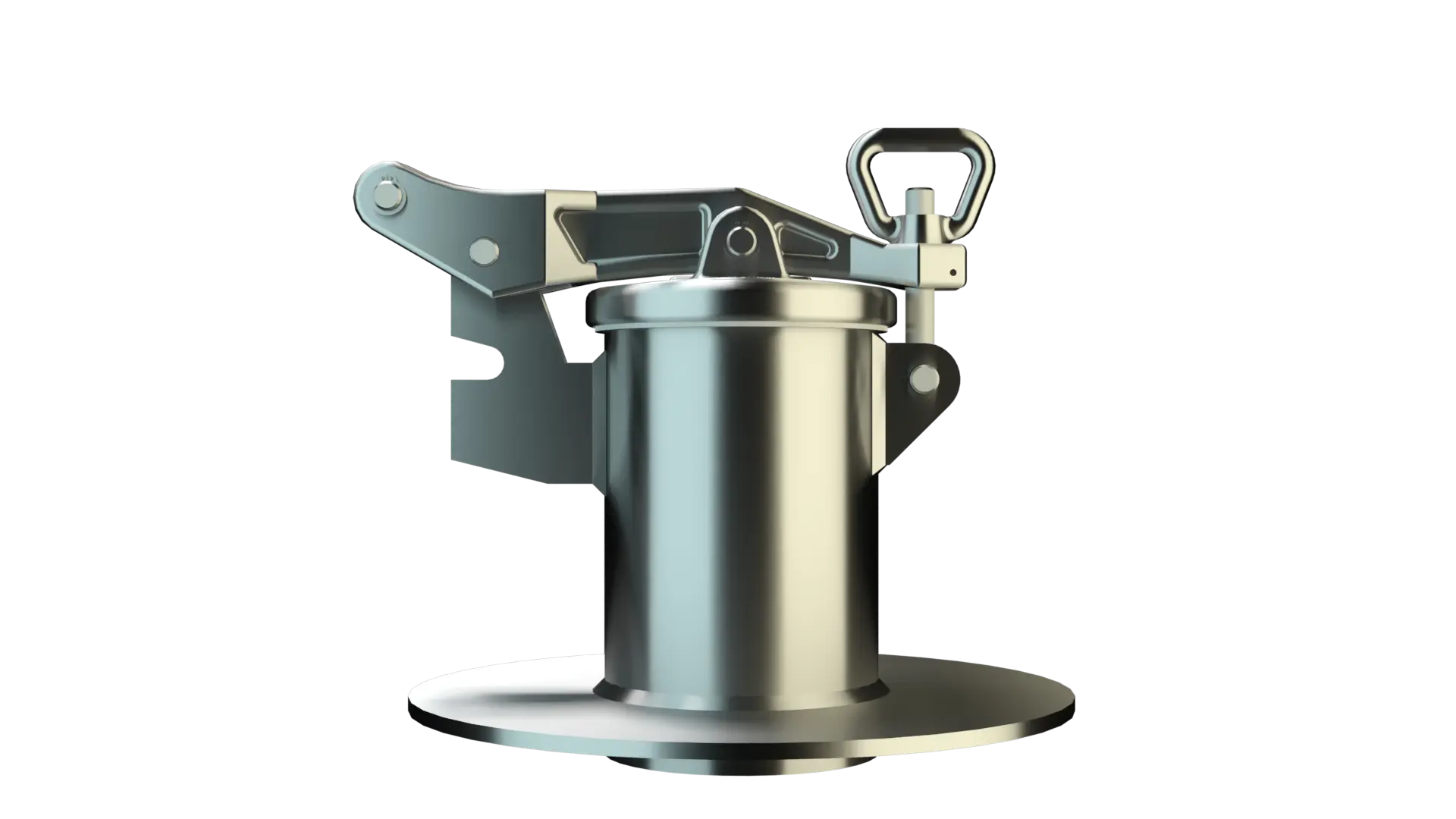

PROTEGO® Gauge Hatches PS/K and PS/TK are used as lockable gauge nozzles which are only opened for gauging or sampling. The Gauge Hatches PROTEGO® PS/K and PS/TK mainly consist of housing, gauging nozzle lid, and gauging nozzle bracket. As a standard, the housing has stainless steel gauging marks. In the pedal-operated version PROTEGO® PS/TK, the gauging nozzle pedal is connected to both the housing and the bracket.

Get in Touch

Any questions? Contact our engineers.

Contact

Product Data

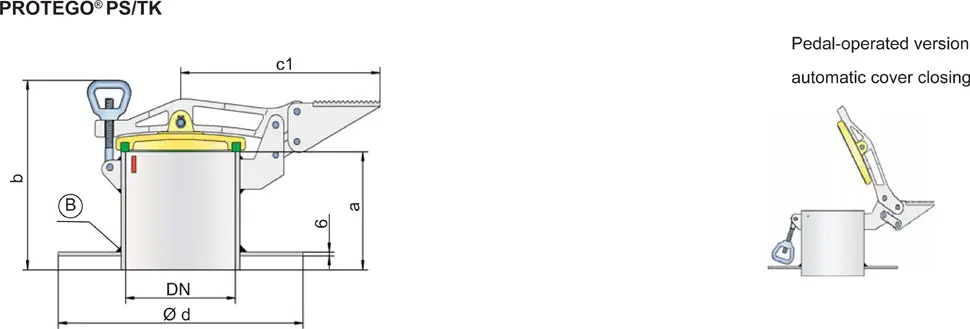

Dimensions

DN	100 / 4''	150 / 6''	200 / 8''
a	175 / 6.89	225 / 8.86	250 / 9.84
b	265 / 10.43	320 / 12.60	355 / 13.98
c	160 / 6.30	205 / 8.07	235 / 9.25
c1	260 / 10.24	305 / 12.01	335 / 13.19
d	275 / 10.83	350 / 13.78	450 / 17.72

Dimensions in mm / inches

The nominal size depends on the dimensions of the gauging and sampling device

Material selection

Design	A	B
Housing	Steel	Stainless Steel*
Cover	Steel	Stainless Steel*

* only for PS/K

Data Necessary for Specification

Stored product
Tank material
Tank nozzle DN (mm or inches)

Flange connection type

The flange connection is to EN 1092-1, Form A. Optionally, the connecting flange can be made according to any international Standard.

Design Types and Specifications

Depending on the intended use the following designs are available:

Gauge hatch with welding nozzle, design I and IIPS/K

remaining open„I“

automatic cover closing„II“

Gauge hatch with welding nozzle and pedalPF/TK

Gauge hatches with flange are available as type PROTEGO^® PF/K, PF/TK and PS/KF. A separate data sheet is available.

Gauge Hatches can for instance be used in combination with the Manual gauge devices type PROTEGO^® H/P or wih the gauging and sampling device PROTEGO^® VP/HK.
