Deflagration Flame Arrester, endurance burning proof, End-of-Line

Request for Quotation Find Contact Person

Features

Comprehensive Weather Protection

Weather hood with protection screen shields the PROTEGO® flame arrester from weather and nesting animals.

Visible Fire Indication by Tilting Weather Hood

in Case of Fire, the Weather Hood Opens, Allowing the Flame to Be Seen From a Far Distance

Safety Against Deflagrations and Hydrocarbon Fires

Provides Protection Against Atmospheric Deflagrations, Short-Time Burning and Endurance Burning of Pure Hydrocarbons

Chemically Resistant

Centrally Aligned Melting Element Is Resistant to Chemicals

Modular Design

Allows Replacement and Cleaning of Single FLAMEFILTER®

Easy Maintenance

Without Disassembling of the FLAMEFILTER®

Spare Parts

Cost-Effective Spare Parts

Function and Description

Protection Against Atmospheric Deflagration and Endurance Burning

The PROTEGO® EB End-of-Line Deflagration Flame Arrester provides protection against atmospheric deflagration and long-lasting stabilized flames, called endurance burning. The device is typically installed on vent lines of vessels and plant equipment which is not pressurized. The device prevents flame transmission from endurance burning or atmospheric deflagration into the vessel or plant.

Main Component – PROTEGO® Flame Arrester Unit

The PROTEGO® EB-IIA consists of the PROTEGO® Flame Arrester Unit (1) and the metal weather hood (2). During normal operation, the metal weather hood is in a closed position. If a stabilized flame burns on the flame arrester element surface, the melting element (3), located in a center position, will melt and let the spring-loaded weather hood move into the open position. The PROTEGO® Flame Arrester Unit consists of one or more FLAMEFILTER® (5), which are installed in a FLAMEFILTER® casing (4), a fixation element (6) and an insert ring (7).

For Explosion Group IIB and IIA

The FLAMEFILTER® gap size, height, and quantity depend on the device’s intended use. The PROTEGO® EB Series End-of-Line Deflagration Flame Arrester is available for substances from explosion group IIA and IIB (NEC group D and B). The standard design can be used with an operating temperature of up to +60°C / 140°F. Devices with special approval for higher temperatures are available upon request. EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.

Get in Touch

Any questions? Contact our engineers.

Contact

Product Data

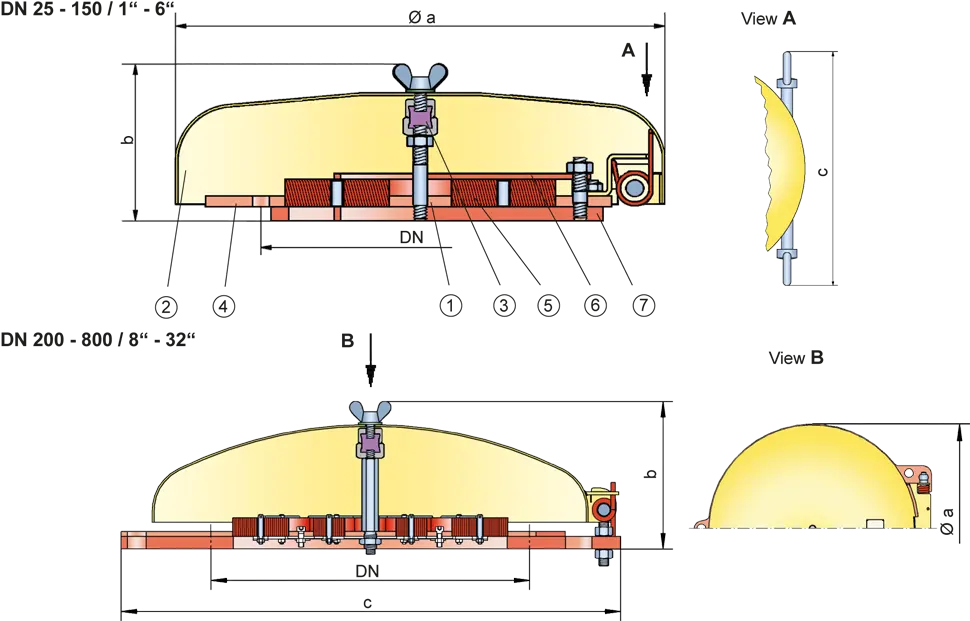

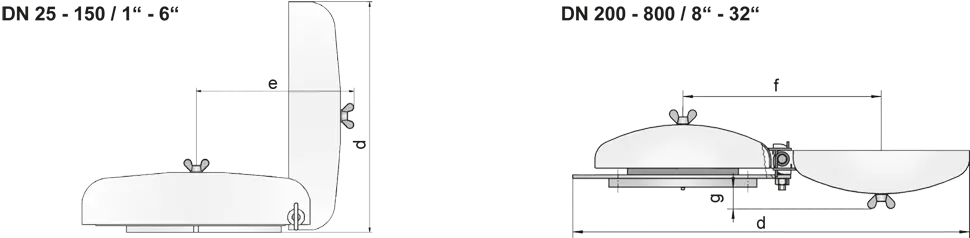

Dimensions DN 25 - 150 for EB-IIA and IIB

To select the nominal size (DN), please use the flow capacity chart on the following page

DN	25 / 1"	32 / 1¼“	40 / 1½“	50 / 2“	65 / 2½“	80 / 3“	100 / 4"	125 / 5"	150 / 6"
a	218 / 8.58	218 / 8.58	218 / 8.58	218 / 8.58	218 / 8.58	353 / 13.90	353 / 13.90	353 / 13.90	353 / 13.90
b	113 / 4.45	113 / 4.45	113 / 4.45	113 / 4.45	113 / 4.45	113 / 4.45	113 / 4.45	113 / 4.45	113 / 4.45
c	232 / 9.13	232 / 9.13	232 / 9.13	232 / 9.13	232 / 9.13	306 / 12.05	306 / 12.05	306 / 12.05	306 / 12.05
d	222 / 8.74	222 / 8.74	222 / 8.74	222 / 8.74	222 / 8.74	355 / 13.98	355 / 13.98	355 / 13.98	355 / 13.98
e	217 / 8.54	217 / 8.54	217 / 8.54	217 / 8.54	217 / 8.54	322 / 12.68	322 / 12.68	322 / 12.68	322 / 12.68

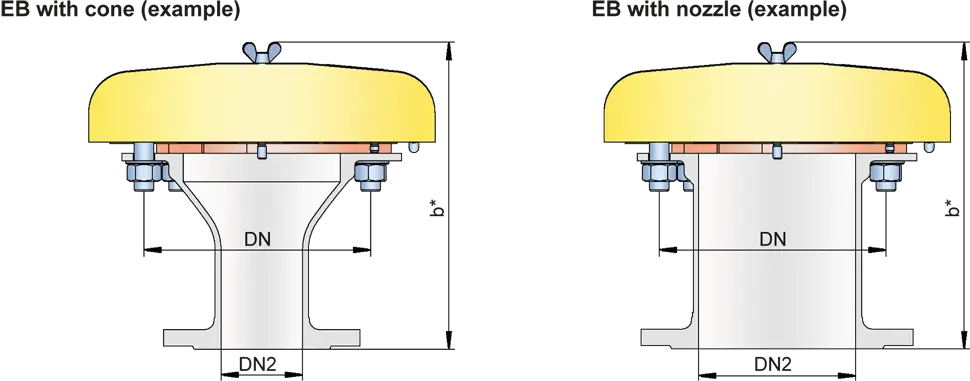

EB-IIA and IIB with cone / nozzle**
DN				50 / 2"		80 / 3"	100 / 4"		150 / 6"
DN2				≤50 / 2“		≤80 / 3“	≤100 / 4		≤150 / 6“
b*				238 / 9.37		263 / 10.35	383 / 15.08		313 / 12.32
Dimensions DN 200 - 800 / 8“ - 32“ for EB-IIA
DN	200 / 8"	300 / 12"	400 / 16"	500 / 20"	600 / 24"	800 / 32“
a	405 / 15.94	555 / 21.85	705 / 27.75	855 / 33.66	1005 / 39.57	1210 / 47.64
b	177 / 6.97	206 / 8.11	235 / 9.25	265 / 10.43	294 / 11.57	330 / 12.99
c	496 / 19.53	650 / 25.59	802 / 31.57	987 / 38.86	1137 / 44.76	1336 / 52.60
d	900 / 35.43	1200 / 47.24	1500 / 59.06	1820 / 71.65	2120 / 83.46	2525 / 99.41
f	450 / 17.72	600 / 23.62	750 / 29.53	920 / 36.22	1070 / 42.13	1270 / 50.00
g	51 / 2.01	80 / 3.15	109 / 4.29	138 / 5.43	167 / 6.57	204 / 8.03
EB-IIA with cone / nozzle**
DN	200 / 8"	300 / 12"	400 / 16"	500 / 20"	600 / 24"	800 / 32"
DN2	≤200 / 8“	≤300 / 12“	≤400 / 16“	≤500 / 20“	≤600 / 24“	≤800 / 32“
b*	401 / 15.94	456 / 17.95	535 / 21.06	614 / 24.17	693 / 27.28	830 / 32.68

Dimensions in mm / inches

** combinations (DN/DN2) please use the table on the following page

Combination (DN/DN2) for EB with cone

Flow capacity charts for EB-DN/DN2-IIA/IIB with cone upon request

DN	50 / 2“	80 / 3“	100 / 4“	150 / 6“	200 / 8“	300 / 12“	400 / 16“	500 / 20“	600 / 24“	800 / 32“
DN2
20 / ¾“	IIA / IIB	IIA / IIB	IIA / IIB	IIA / IIB
25 / 1“	IIA / IIB	IIA / IIB	IIA / IIB	IIA / IIB
32 / 1¼"	IIA / IIB	IIA / IIB	IIA / IIB	IIA / IIB
40 / 1½"	IIA / IIB	IIA / IIB	IIA / IIB	IIA / IIB
50 / 2“	IIA / IIB	IIA / IIB	IIA / IIB	IIA / IIB	IIA
65 / 2½“		IIA / IIB	IIA / IIB	IIA / IIB
80 / 3“		IIA / IIB	IIA / IIB	IIA / IIB	IIA	IIA
100 / 4“			IIA / IIB	IIA / IIB	IIA	IIA
125 / 5“				IIA / IIB	IIA
150 / 6“				IIA / IIB	IIA	IIA	IIA
200 / 8“					IIA	IIA	IIA	IIA	IIA
250 / 10“					IIA	IIA	IIA
300 / 12“							IIA	IIA	IIA
350 / 14“								IIA	IIA
400 / 16“								IIA	IIA	IIA
450 / 18“								IIA	IIA	IIA
500 / 20“									IIA	IIA
600 / 24“										IIA
700 / 28“										IIA

Material selection for housing

Design	A	B
flange ring	Steel	Stainless Steel
Weather hood	Steel	Stainless Steel
cone / nozzle	Steel	Stainless Steel
Flame arrester unit	A, B, C	B, C

Special materials upon request

Material combinations of flame arrester unit

Design	A	B	C
FLAMEFILTER^® cage	Steel	Stainless Steel	Stainless Steel / Hastelloy
FLAMEFILTER^®	Stainless Steel	Stainless Steel	Hatselloy
Spider ring	Steel	Stainless Steel	Stainless Steel / Hastelloy

Special materials upon request

Selection of explosion group

MESG	Expl. Gr. (IEC / CEN)	Gas Group (NEC)
> 0,90 mm	IIA	D
≥ 0,50 mm	IIB	B

Special approvals upon request

Flange connection type

EN 1092-1 (without cone); EN 1092-1; Form B1 (with cone / nozzle)

ASME B16.5 (without cone); ASME B16.5 CL 150 R.F. (with cone / nozzle)

other types upon request

Design Types and Specifications

There are three different designs:

Deflagration flame arrester, end-of-line, basic designEB

End-of-line deflagration flame arrester, with coneEB - DN/DN2

End-of-line deflagration flame arrester, with cone and heating jacketEB - H - DN/DN2

Special designs available on request

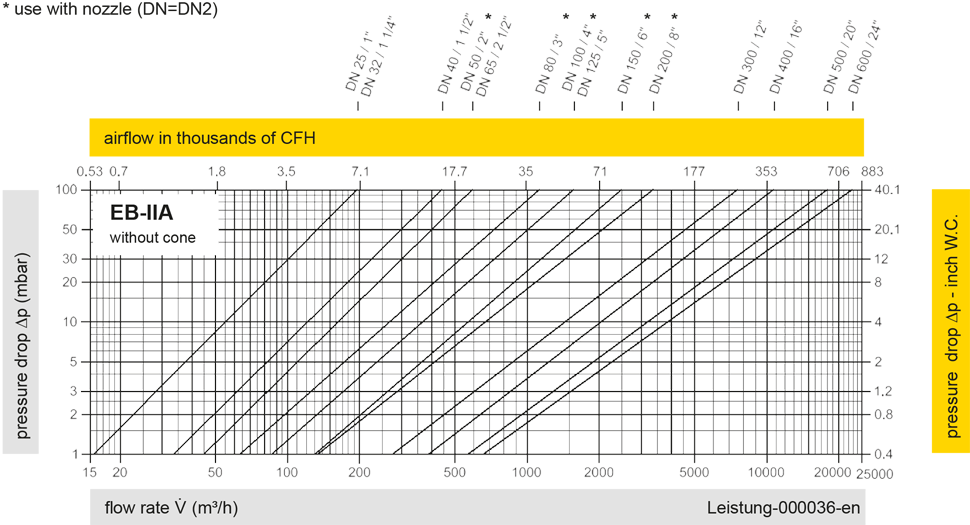

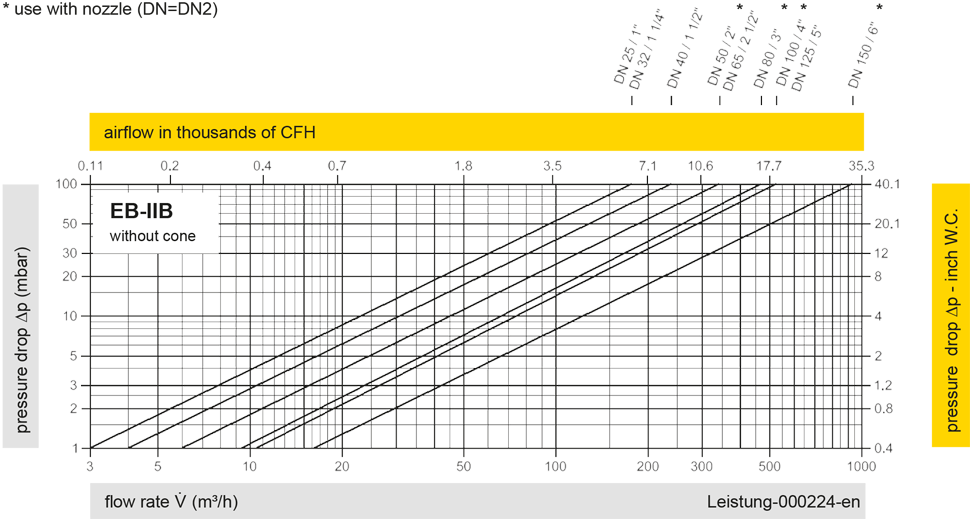

Flow Capacity Chart

Remark: Flow capacity charts for EB-DN/DN2-IIA/IIB with cone upon request

The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
