Function and Description
Highly Developed Pressure Relief Valve
The PROTEGO® Valve D/KSM is a state-of-the-art pressure relief valve with excellent flow performance made out of high grade synthetic material. It is primarily used as a safety fitting for relieving pressure in tanks, containers, and process engineering equipment. The valve prevents emission losses almost up to the set pressure. The valve is a perfect solution for corrosive, polymerizing, or sticky substances. The device will start to open as soon as the set pressure is reached and only required 10% overpressure to reach full lift.
Full Lift Technology
Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. This “Full Lift Type” technology allows the valve to be set at just 10% below the maximum allowable working pressure ( MAWP Maximal erlaubter Betriebsdruck (MAWP) Maximaler zulässiger Überdruck im oberen Bereich eines kompletten Behälters in normaler Betriebsstellung bei der genannten übereinstimmenden Temperatur, die für diesen Druck spezifiziert ist. ) of the tank and still safely vent the required mass flow.
Advanced Manufacturing Technology
Due to our highly developed manufacturing technology, the tank pressure is maintained up to the set pressure with a tightness that is far superior to the conventional standard. This feature is achieved by special valve seats made of high quality synthetic material or PTFE. After the excess pressure is released, the valve re-seats and provides a tight seal. The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in a stable operation of the valve pallet, optimized performance, and reduced product losses.
Dimensions
To select the nominal size (DN), use the flow capacity chart on the following page
| DN | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" |
| a | 376 / 14.80 | 521 / 20.51 | 563 / 22.17 | 687 / 27.05 | 952 / 37.48 |
| a | (543 / 21.38)* | (681 / 26.81)* | |||
| b | 180 / 7.09 | 250 / 9.84 | 300 / 11.81 | 350 / 13.78 | 560 / 22.05 |
| b | (405 / 15.94)* | (500 / 19.68)* |
Dimensions in mm / inches
* Dimensions in brackets only for PVDF
Material selection for housing
| Design | A | B | C |
| Housing | PE | PP | PVDF |
| Valve seats | PE | PP | PVDF |
| Sealing | FPM | FPM | FPM |
| Valve pallet | A, C, D | B, C, D | C, D |
Special materials upon request
Material selection for pressure valve pallet
| Design | A | B | C | D |
| Pressure range [mbar] [inch W.C.] | +6,0 up to +16 +2.4 up to +6.4 | +5,5 up to +16 +2.2 up to +6.4 | +9,5 up to +30 +3.8 up to +12 | +30 up to +100 +12 up to +40 |
| Valve pallet | PE | PP | PVDF | Hastelloy |
| Sealing | PTFE | PTFE | PTFE | PTFE |
| Spindle guide | PE | PP | PVDF | Hastelloy |
| Weights | PE | PP | PVDF | Hastelloy |
Special materials and other pressure Settings are available upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 F.F. |
other types upon request
Design Types and Specifications
The valve pallet is weight-loaded, and the highest pressure levels are only attained with metal disks.Additional special devices available upon request.
Settings
| Pressure: | +6.0 mbar | +100 mbar |
| +2.4 inch W.C. | +40 inch W.C. | |
| +4.0 mbar | +100 mbar | |
| +1.6 inch W.C. | +40 inch W.C. | |
| +4.5 mbar | +100 mbar | |
| +1.8 inch W.C. | +40 inch W.C. |
Higher pressure settings upon request.

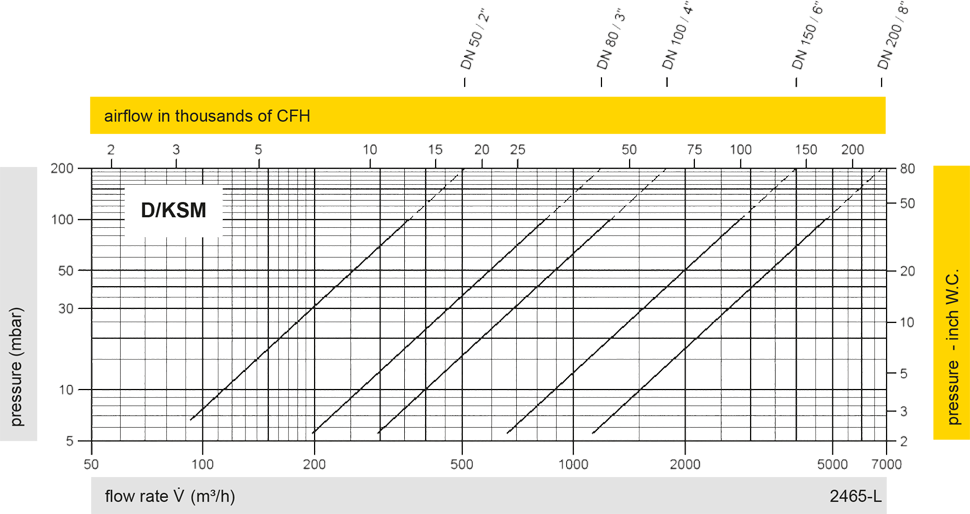

Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
