Características
Função e descrição
Highly Developed Vacuum Relief Valve

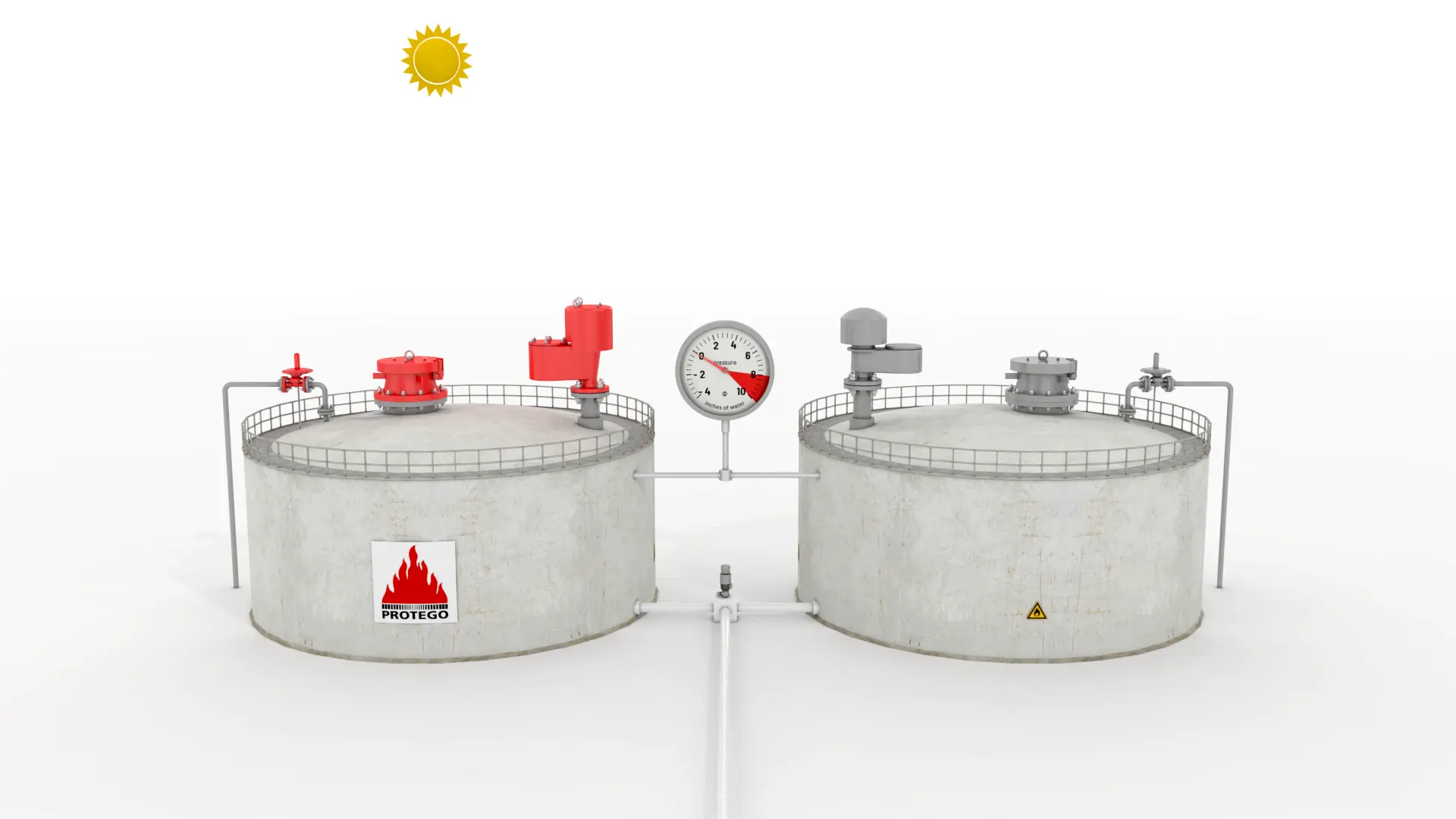

The PROTEGO® V/SV-XXL valve is a highly developed optimized vacuum relief valve Soupape de dépression A vacuum relief valve is used to ventilate a part of the system and protects it from impermissible underpressure. with excellent flow performance. It is primarily used as a device Appareil A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. for relieving vacuum Dépression Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. in tanks, containers, and process equipment.
High-Performance Vacuum Relief Valve with Precise Tightness
When the set vacuum Set vacuum Internal negative gauge pressure at which a vacuum valve first opens. is reached, the valve starts to open and reaches full lift Course Lift is the actual travel of the valve pallet from the main valve out of the closed position. within 100% vacuum increase. The tank vacuum is maintained up to the set vacuum with a tightness that is above the normal standards due to our highly developed manufacturing technology. This feature is ensured by valve seats made of high quality stainless steel with precisely lapped valve pallets and a reinforced housing Corps A housing is a solid shell, which surrounds a content, either protecting the content from external influences, or protecting the environment from the content. design. After the vacuum is balanced, the valve re-seats and provides a tight seal Joint A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. .
Flow-Optimized Valve Body for Maximum Efficiency
The optimized fluid dynamic design of the valve body and valve pallet Clapet Valve pallet is the generic term for the assembly that rests on the valve seat. is a result of extensive research and development, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Tabela de dimensões
| DN | 300 / 12" |
| a | 946 / 37.24 |
| b | 649 / 25.55 |
Dimensões em mm
Dimensions of pressure and vacuum relief valves with heating jacket upon request
Seleção do material do corpo
| Design | A | B | C |
| Housing | Aluminium | Steel | Stainless Steel |
| Heating jacket (V/SV-XXL-H-...) | – | Steel | Stainless Steel |
| Valve seat | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | PTFE | PTFE | PTFE |
| Cover | Aluminium | Steel | Stainless Steel |
Option: Housing ECTFE-coated
Special materials upon request
Seleção do material do disco da válvula de vácuo
| Design | A | B |
| Pressure range [mbar] [inch W.C.] | -2.0 up to -9.0 -0.8 up to -3.6 | <-9.0 up to -16 <-3.6 up to -6.4 |
| Valve pallet | Aluminium | Stainless Steel |
| Sealing | Metal to Metal | Metal to Metal |
Special material as well as higher vacuum upon request
Tipo de conexão flangeada
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Versão e especificação
The valve pallets are weight-loaded. Higher vacuum can be achieved upon request with a special spring Ressort A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. -loaded design. There are two different designs:Additional special devices available upon request.
Settings
| Vacuum: | -2.0 mbar | -16 mbar |
| -0.8 inch W.C. |
Higher vacuum settings upon request.
Diagrama de vazão
Este diagrama de vazão foi determinado em uma bancada de medição de vazão calibrada e certificada pela TÜV. A vazão V em m³/h se refere ao estado técnico padrão de ar, conforme ISO 6358 (20°C, 1bar). Para conversão em outras densidades e temperaturas, veja o cap. 1: Bases técnicas.
