High-Performance Pressure Relief Valve
The D/SVL Type PROTEGO® valve is a high performance pressure relief valve Soupape de surpression Valve designed to open and relieve excess pressure and to reclose and prevent the further flow of fluid after normal conditions have been restored. . It is primarily used as a device Appareil A device is a pipe component that influences the media flow by opening, closing, or partially shutting off the flow channel or by dividing or mixing the media flow. for relieving pressure Pression d'ouverture The relieving pressure is the vacuum or overpressure at which the valve reaches the lift required for the mass flow to be discharged. in tanks, containers, and process engineering equipment. The valve offers reliable protection against overpressure Surpression Overpressure refers to an increase in pressure in a system or vessel above the normal operating pressure. and prevents excessive loss of product vapors close to the set pressure Pression de réponse Set pressure is the gauge pressure at the device inlet at which the relief device is set to start opening under service conditions. .
Full Lift Technology
The device will start to open as soon as the set pressure is reached and only requires 10% overpressure to full lift Course Lift is the actual travel of the valve pallet from the main valve out of the closed position. . Continuous investments in and a commitment to research and development have allowed PROTEGO® to develop a low pressure valve which has the same opening characteristic as a high pressure safety relief valve. With this “Full Lift Type” technology, the valve can be set at just 10% below the maximum allowable working pressure of the tank and still safely vent the required mass flow.
Advanced Manufacturing Technology
Due to the highly developed manufacturing technology, the tank pressure Pression de la cuve Tank pressure is the pressure within a tank. is maintained up to the set pressure with a tightness that is far superior to the conventional standard. This feature is achieved by valve seats made of high quality stainless steel and with precisely lapped valve pallets (1), or with an air cushion seal Joint A seal prevents or limits unwanted transfer of product from one container to another. Seal is used as superordinate term for all types of sealing elements. (2) in conjunction with high quality FEP diaphragm Membrane A diaphragm is a thin layer of material, which has a large surface area. . The valve pallets are also available with a PTFE seal to prevent the valve pallet Clapet Valve pallet is the generic term for the assembly that rests on the valve seat. from sticking when sticky products are used, and they enable the use of corrosive substances. After the overpressure is released, the valve re-seats and provides a tight seal again. The optimized fluid dynamic design of the valve body and valve pallet is a result of many years of research, resulting in stable operation of the valve pallet, optimized performance, and reduced product losses.
Dimensiones
To select the nominal size Diamètre nominal The nominal size is an alphanumeric designation of size for components in a piping system, used for reference purposes, comprising the letters DN followed by a dimensionless integer that is indirectly related to the physical size of the bore or outside diameter of the connections, expessed in millimeters. (DN), use the flow capacity chart on the following page
| DN | 50 / 2" | 80 / 3" | 100 / 4" | 150 / 6" | 200 / 8" | 250 / 10" | 300 / 12 |
| a | 336 / 13.23 | 412 / 16.22 | 444 / 17.48 | 564 / 22.20 | 664 / 26.20 | 687 / 27.05 | 687 / 27.05 |
| b | 200 / 7.87 | 295 / 11.61 | 295 / 11.61 | 465 / 18.31 | 550 / 21.65 | 650 / 25.59 | 650 / 25.59 |
Dimensiones en mm / pulgadas
Selección de materiales para la vivienda
| Design | A | B |
| Housing | Steel | Stainless Steel |
| Valve seat | Stainless Steel | Stainless Steel |
| Sealing | PTFE | PTFE |
| Weather hood | Stainless Steel | Stainless Steel |
Special materials upon request
Selección de materiales para la válvula de presión
| Design | A | B | C | D | E | F |
| Pressure range [mbar] [inch W.C.] | +2,0 up to +3,5 +0.8 up to +1.4 | >+3,5 up to +14 >+1.4 up to +5.6 | >+14 up to +35 >+5.6 up to +14 | >+35 up to +60 >+14 up to +24 | >+14 up to +35 >+5.6 up to +14 | >+35 up to +60 >+14 up to +24 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal | Metal to Metal | PTFE | PTFE |
Special materials and devices with higher set pressure or vacuum Dépression Vacuum is the pressure in an enclosed space that is lower than the ambient pressure. are available upon request
Tipo de bridas de conexión
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Modelo y especificación
The valve pallet is weight-loaded. Higher pressures can be achieved upon request with a special spring Ressort A spring is a spiral of wire which returns to its original shape after it is pressed or pulled. -loaded design.Additional special devices available upon request.
Settings
| Pressure: | +2.0 mbar | +60 mbar |
| +2.0 inch W.C. | +24 inch W.C. |
Higher pressure settings upon request.

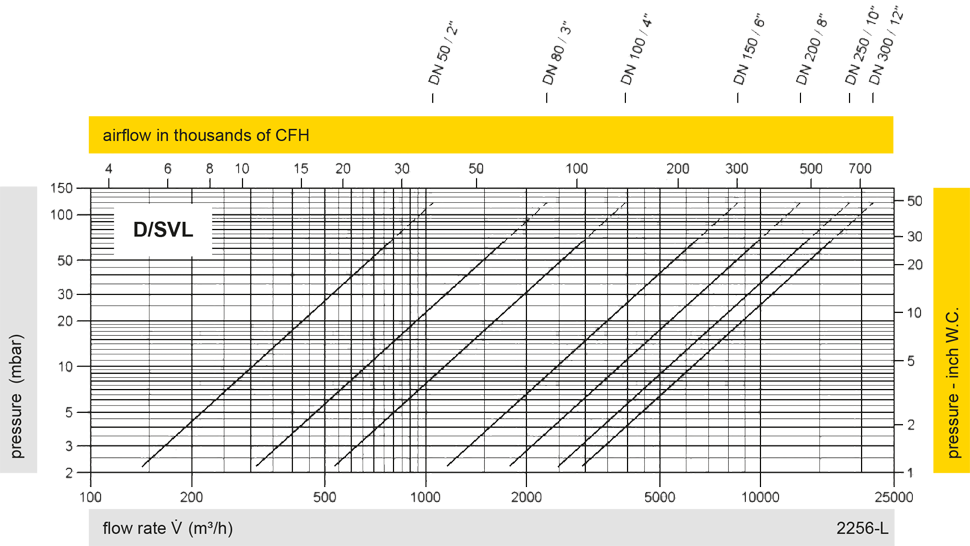

Diagrama de flujo volumétrico
Los diagramas de flujo volumétrico han sido determinados con un banco de pruebas de caudal calibrado y certifi - cado por TÜV. El flujo volumétrico V. en [m³/h] y el CFH se refi eren a las condiciones estándar de referencia de aire según ISO 6358 (20°C, 1bar). La conversión a otras densidades y temperaturas están referidas en el Vol. 1: “Fundamentos Técnicos”.
